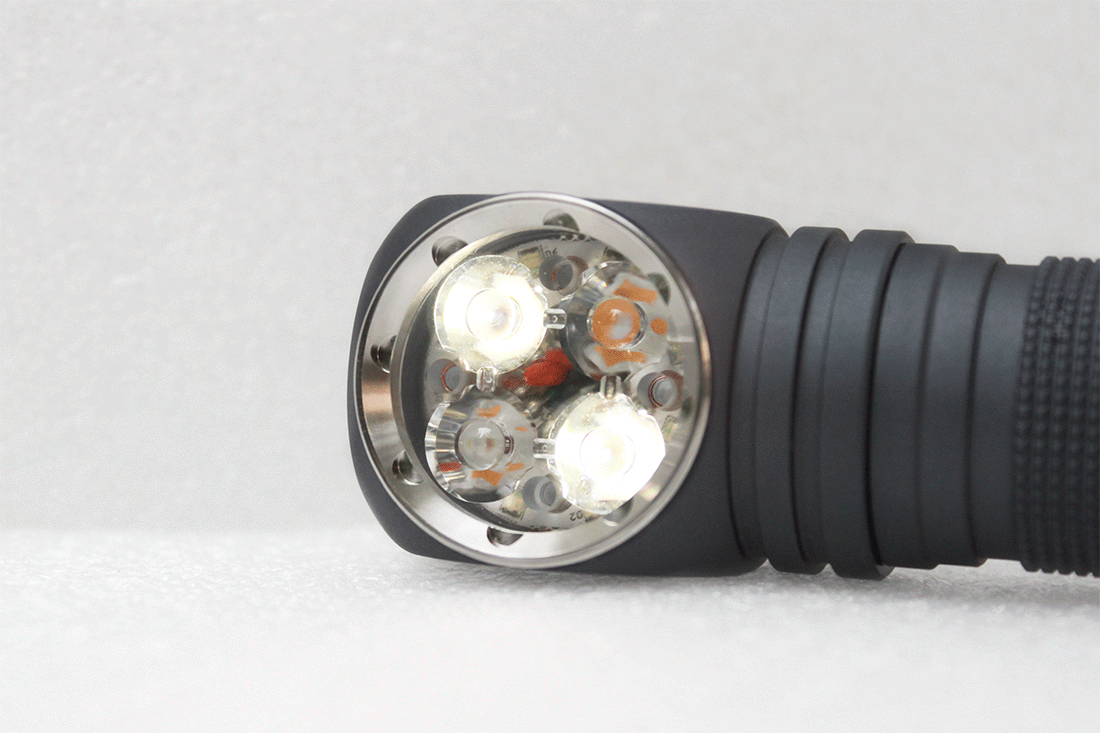

This is the dual channel version, please refer to the single channel version here.
The light works with flat top, unprotected battery only, button top or protected battery may damage the light
Anduril 2 firmware, user choose the tint ramping or instant channel switching (operation video for reference)
Advanced mode Off -> 9H, first menu item:
0C: tint-ramping (smooth)
1C: instant channel switching
4 LEDs can be on at the same time with full power.
Features:
• CNC machined from aircraft-grade aluminium
• Efficient UK made Carclo Quad LED optics (The E21A/E17A version use frosted optic, and the other version use clear optic)
• Unihead construction
• High lumen output and low moon output
• Ramping interface
• Electronic soft touch switch
• Beryllium-Copper springs with 45% IACS superior to stainless steel alloys used for springs with only 2% IACS.
• Temperature step-down
• Waterproof and dustproof to IP67 standard (up to 1 meter)

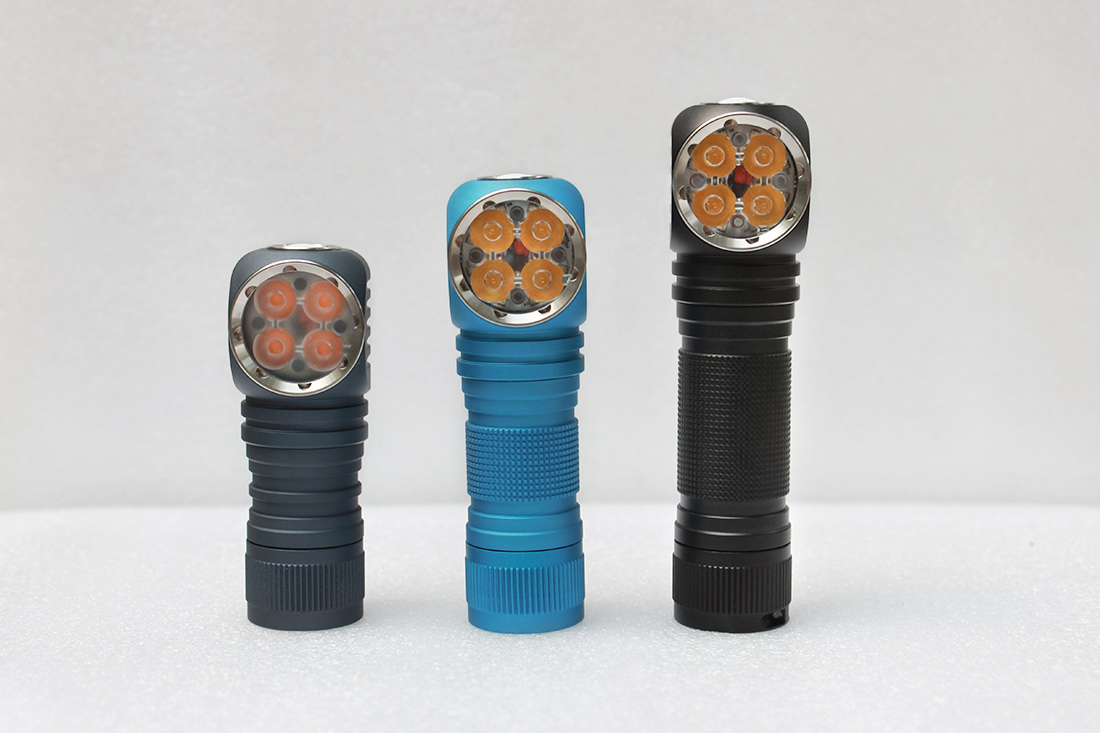

• Default 18650 body with optional 18500 or 18350 battery tube
• Weight: 84g
• Dimensions: 113mm(length) * 30mm(head) * 24mm(body)
OTF lumen output at start-up for the direct drive version
519A : 4000lm
SST-20 6500K/5000k: 4200lm
SST-20 4000K/2700K 95CRI: 3000lm
This product uses free software of Anduril 2, distributed under the terms of the GPLv3.
Source code is available from http://tiny.cc/

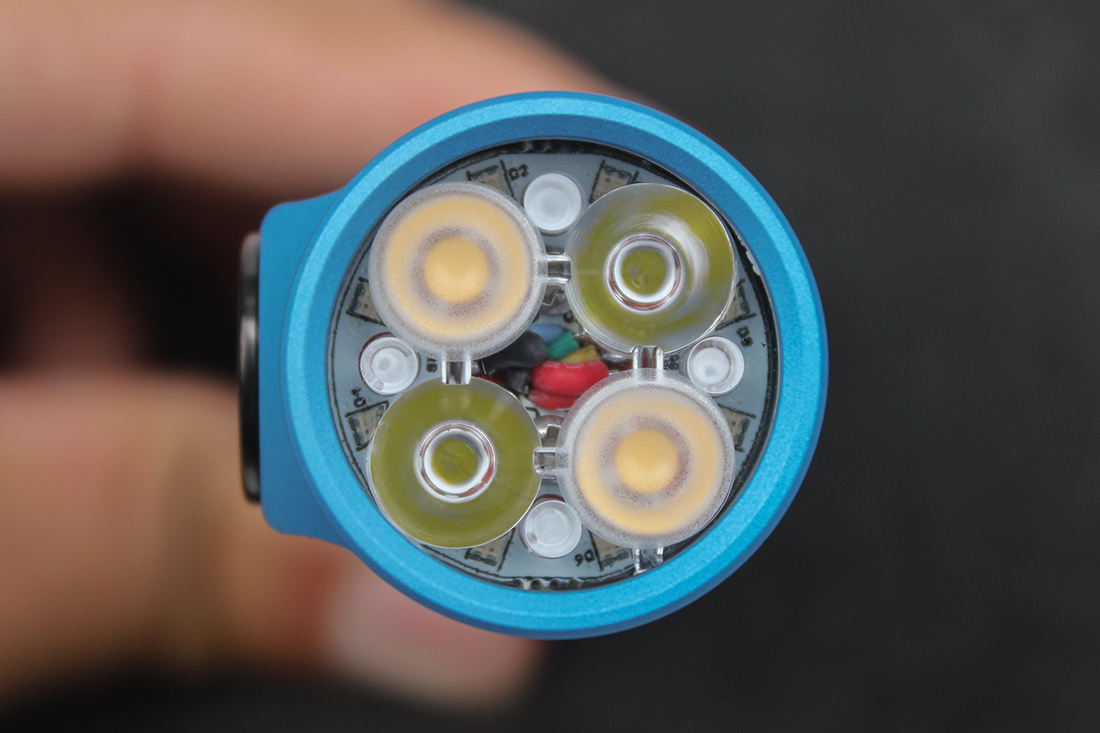

Different optic will be used for different combo to achieve best performance.
For example, for W1/SFT-25R LED + 519A/SST-20 combo, N244SW optic will be used.
E21A+E21A combo, 10623 optic will be used, etc.
If you have preferable of which type of optic to be installed in your light, please shoot us an email.
